Aliva Facade Systems

ALU.COVERING ®

Extruded aluminum rainscreen system

Luster, refinement and eccentricity.
Alu.covering is inspired by metal alloys, lightweight and durable at the same time, resistant to corrosion, with the passing of time and fashions. A ductile, malleable and eco-sustainable material. A main element to give infinite creativity to the metallescent facade architectures.


Alu.covering is the most complete and technologically advanced architectural response to the design requirement for extruded aluminum rainscreen systems with a high degree of character and strong personality. The cladding panels, with a maximum size of 12" by 500" Nom. and a minimum thickness of 0,080", are produced using extrusion, cutting, and machining systems that guarantee extremely tight. The aluminum alloy is environmentally friendly, it can be recycled an infinite number of times, and its recycled content can be as high as 80% by weight.

The EN AW-6063 T6/T66 (AlMgSi) aluminum alloy substructure system is made up of extruded brackets and risers of suitable section, connected by means of AISI 304 and 316 stainless steel fittings and technologies that allow fastening in all conditions and free thermal expansion of all components, with both vertical and horizontal architectural modules.

100% Made in Italy

  • Recyclability
  • Recycled content
  • Easy installation
  • Impact resistance
  • Chemicals resistance
  • Easy cleaning
  • Fire reaction
  • Resistance to atmospheric agents

ALU.COVERING ® MODELS

Aluminum rainscreen system Alu.covering cladding profiles are made of extruded aluminum alloy and are available in different shapes (smooth, curved, sine-wave shape, zeta profile or custom) and in heights of up to 12". The panels can have both horizontal and vertical orientation.
PIANA F
PIANA
ONDA
ONDA LUNGA (CONVEX & CONCAVE)
ZETA
MANHATTAN
QUADRA
CANNETTATO
MARE
LAGO
PUNTO LINEA
ALPINA

COLOURS AND FINISHES

The aesthetic elements of Alu.covering are an expression of maximum creative freedom in façade: highly customisable in terms of shape and colour, the finishes range from anodised with polymerised polyester powders in thicknesses of not less than 60 microns (in accordance with the AAMA2604 and AAMA 2605 standards) or oxidized, in thicknesses of not less than 15 microns, in accordance with current regulations regarding anodic oxidation for outdoor use (in accordance with the AAMA 611 standard) and sublimated ones that evoke the aesthetic characteristics of other materials, while retaining the technical and performance characteristics of aluminium.

ANODIZING

The main anodized finishes available for ventilated aluminum facades.
Arc 7
Ars 1
Titanium
Prep-T
Graft-T
Steel
Matt Steel
Prep-A
Graft-A
Arc 10
Ars 4
Champagne
Arc 11
Ars 5
203
Arc 2004
Ars 2003
Arc 2006
Ars 2005
205
Arc 2008
Black
Prep-N
Graft-N
FINISHES

PAINTING

In addition to the whole RAL range, we can supply original and special paints as per the following examples.
BP Pioggia
BS Tramonto
BV Acqua
CC Calma
GS Suolo
LS Letargico
LT Lacrima
MS Palude
PT Tornado
RC Fango
RT Turchina
RW Ghiaccio
SC Corten
SP Torba
TH Artigiano
TS Rame
US Steppe
WH Umido
WT Bosco
FINISHES

WOODS

A range of finishes selected among the finest and trendy woods.
Cherry Wood-ZG
Cherry Wood-H
Walnut
Walnut-RE
Olive Wood-GB
Elm-CG
Pine-M
Pine-UG
A30R-3D
Oak
Oak-GV
Oak-C
FINISHES

Video

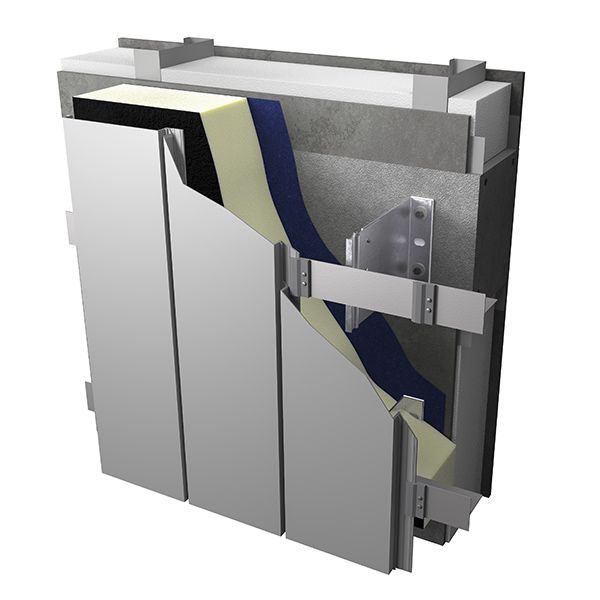

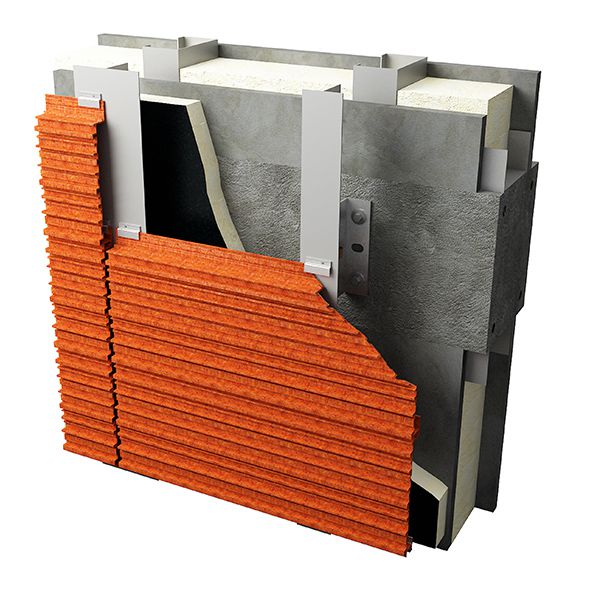

Rainscreen system composition

More
  • 1 T1 vertical mullion
  • 2 L bracket
  • 3 TL rivet
  • 4 Retaining clip
  • 5 Starting profile

Technical Documents
