Headquarter pharmaceutical multinational
Mexico City, Mexico


The façade produced for the Headquarter pharmaceutical multinational in Mexico City was designed by "VeFO arquitectos", one of Mexico’s leading firms of architects. The project as a whole is highly innovative, and the combining of a detailed structural design with the spatial functioning, and the use of bioclimatic design with the benefits of cutting-edge technology, results in a smart and environmentally friendly Green Building. The façade was designed with a curved shape with three-dimensional lines, the purpose of which is to improve the thermal comfort of the users, reflecting the sun’s rays during the summer and allowing the entry of a correct amount of light in the winter.
Aliva designed over 370 types of special brackets, with different shapes and sizes for the construction of the curved three-dimensional facade. The cladding, in stainless steel wire mesh, is composed of large sheets (4x36 m) fixed to a structure, designed and supplied by Aliva, consisting of extruded aluminium runners and brackets attached to the main steel structure.

Technical documents

Load bearing structure detail
Bracket detail
Tubular detail

Gallery

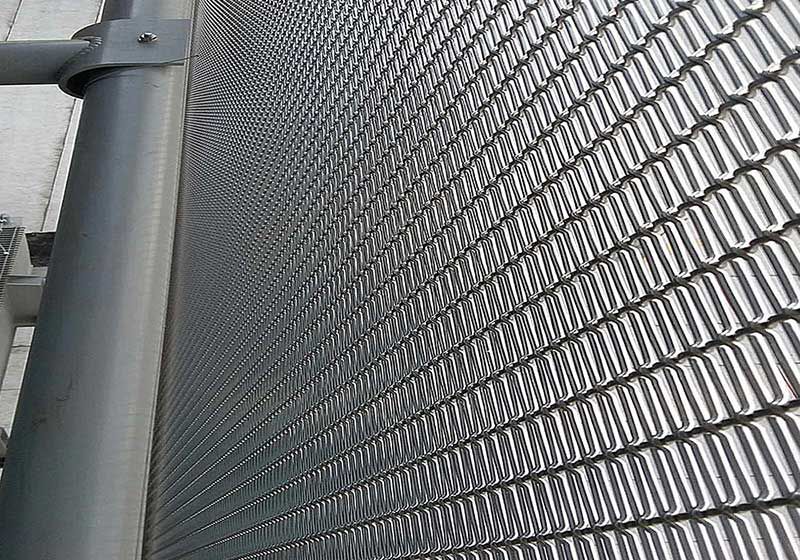

Wire mesh detail
Junction between bracket and net
Facade detail
Fixing system detail
Front elevation
Overview
